Jumper wires (tilda, j) pads is covered with mask in 3D

Report bugs here
Post Reply
Message
Author
LG6MTFfSU0dVons
Posts: 9
Joined: 05 Aug 2025, 07:39

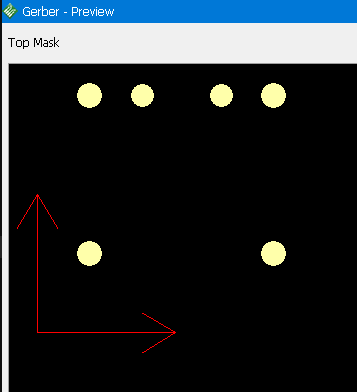

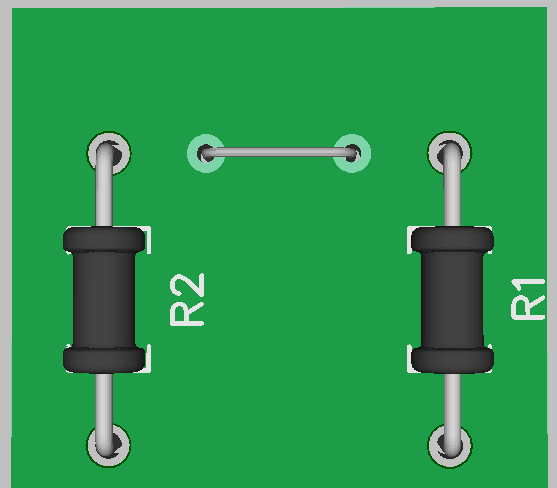

Jumper wires (tilda, j) pads is covered with mask in 3D

#1 Post by LG6MTFfSU0dVons » 10 Jan 2026, 13:14


DT 5.2.0.4
Top
Serg
Technical Support
Posts: 619
Joined: 09 Jun 2010, 12:12

Re: Jumper wires (tilda, j) pads is covered with mask in 3D

#2 Post by Serg » 12 Jan 2026, 13:09

It does not reproduce. Please send an example.
Top
LG6MTFfSU0dVons
Posts: 9
Joined: 05 Aug 2025, 07:39

Re: Jumper wires (tilda, j) pads is covered with mask in 3D

#3 Post by LG6MTFfSU0dVons » 13 Jan 2026, 07:30

jumper_pads_covered_in_3D.dip
(17.76 KiB) Downloaded 55 times
Top
Serg
Technical Support
Posts: 619
Joined: 09 Jun 2010, 12:12

Re: Jumper wires (tilda, j) pads is covered with mask in 3D

#4 Post by Serg » 13 Jan 2026, 19:26

Thank you for the file and for the report. Yes, indeed, there is an issue with solder mask display in 3D for vias. I have created a ticket in our internal bug tracker for the developer’s review.
Top
